GPU Notebook
Sizing guide: what really fits in 16 GB
- measurements read from 7 projects
- 18
- video distillation speed-up (4 steps vs 16)
- ×7.8
- slowdown once swap saturates
- ×8.9
- peak of the 9B LoRA: the dedicated-GPU threshold, measured
- 12.3 GB
- The problem
- Choosing a local generation setup is often done by feel; it needs measured values, conditions included.
- For whom
- The portfolio’s local projects, and any team that has to size a generation machine.
- The outcome
- A verdict per task from 18 real measurements: 7B image in 141 s, distilled video in 40 s, 3B LLM at 28–53 tok/s; 1.2B LoRA in 18.6 min, 9B LoRA on a dedicated GPU (12.3 GB peak).
Context
The question from a client who wants “local AI”: what fits on a 16 GB machine, how long does it take, and where should you rent a GPU? The portfolio projects produced real measurements; this project reads them, compares them and draws a verdict per task.
What I built
- Standard-library ComfyUI and LLM benches: wall time, memory, image hashing, cold and warm kept apart.
- Automatic synthesis: one script reads 16 measurement files (CSV, JSON, logs) and writes the table and the charts in French and English, with the source of every number.
- Sizing guide: verdict per task, the setting that works, the point to move to a dedicated GPU, five rules drawn from the measurements.
- Benchmark-trap detection: ComfyUI execution cache (1 s, bit-identical image), GPU throughput dropping on the 3rd call.
Architecture 6 blocks
- 01 · InputConditionsMachine, versions, graph and settings recorded
- 02 · ToolComfyUI benchtxt2img, wall time, memory, image hashing
- 03 · ToolLLM benchllama-server, Metal vs CPU, prompt cache off
- 04 · DataMeasurementsCSV and JSON, one value per run, cold and warm
- 05 · ToolSynthesis16 files read across 7 projects, source of every number kept
- 06 · OutputSizing guideVerdict per task, FR/EN charts, dedicated-GPU thresholds
Pipeline 4 steps
- MeasureEach project writes its timings and memory peaks.
- ReadThe script finds the 18 measurements in their files.
- CompareTime and memory charts, FR and EN.
- AdviseVerdict per task and switch-over points.
Decisions the choice, the reason, the alternative ruled out
- D1Publish each run separately, with no percentiles on four values.
A median would hide the GPU throughput collapse from the 3rd warm call (52.9 → 30.0 → 28.2 tok/s).
Ruled outAverages or percentiles.
- D2Detect ComfyUI’s execution cache and exclude it from averages.
An already-computed graph returns in 1 s with a bit-identical image: a classic benchmarking trap.
Ruled outAveraging everything unchecked.
- D3llama.cpp (llama-server) with Qwen2.5-3B Q4_K_M, temperature 0, prompt cache off.
The same server switches between GPU and CPU: both series compare under identical conditions.
Ruled outOllama, ruled out.
- D4Read the numbers from the measurement files instead of copying them.
A sizing guide is only worth something if every number can be traced to its source; the synthesis regenerates after every new series.
Ruled outA hand-typed table.
- D5Keep process memory and Metal buffers apart.
Every memory figure is labelled for what it measures: no value is presented as GPU memory without a dedicated measurement.
Results

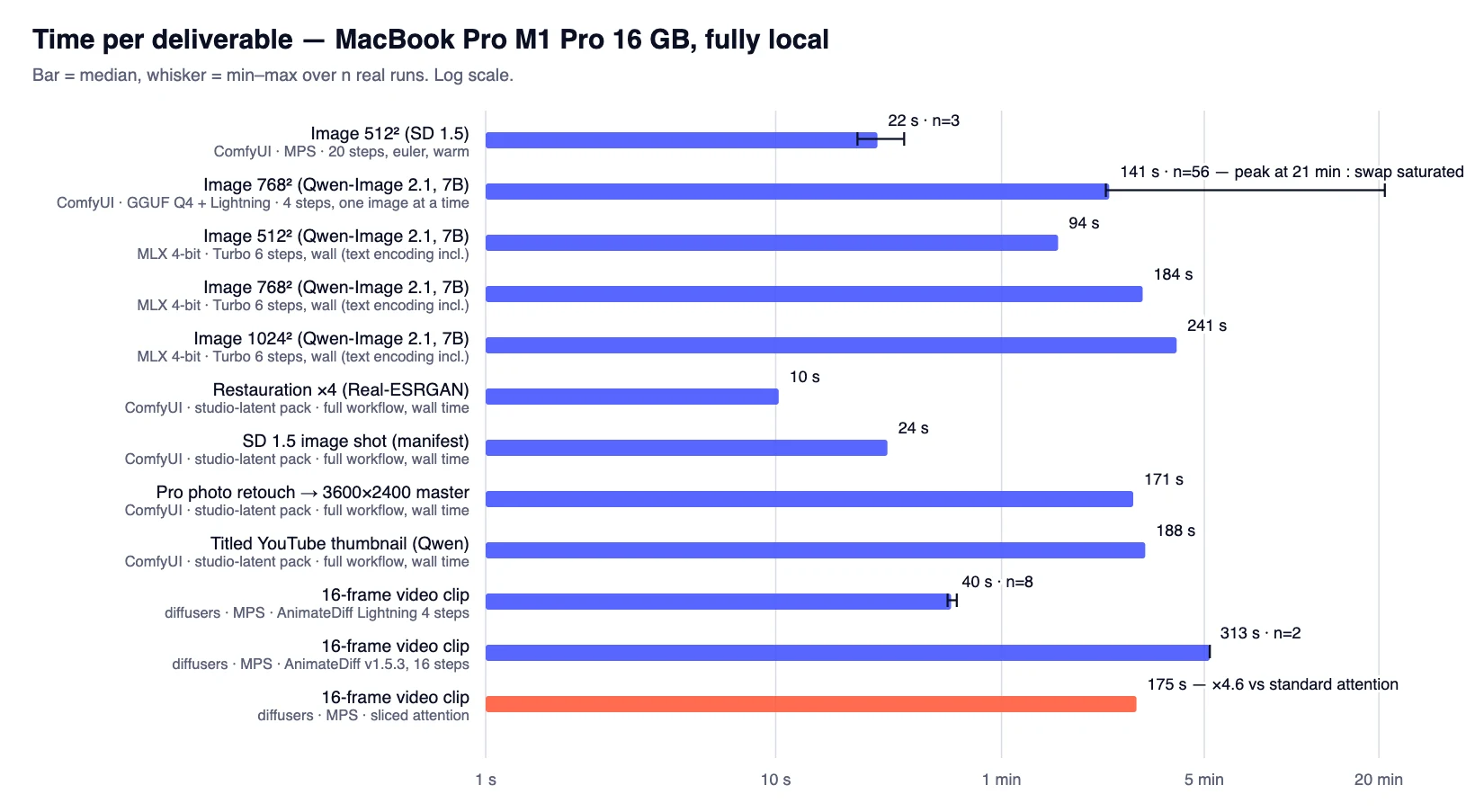

Verdict per task — MacBook Pro M1 Pro 16 GB
| Task | Local? | Measured setting |
|---|---|---|
| 768² image, 7B model | yes, batched | GGUF Q4 + 4 steps: 141 s (n = 55) |
| Photo retouch → 3600×2400 master | yes | full ComfyUI workflow: 171 s |
| 16-frame video clip | yes, distilled | 4 steps: 40 s (n = 8), 9.0 GB peak |
| 3B LLM generation | yes | llama.cpp GPU: 28–53 tok/s |
| LoRA on a 1.2B LLM | yes | 18.6 min, 2.2 GB peak |

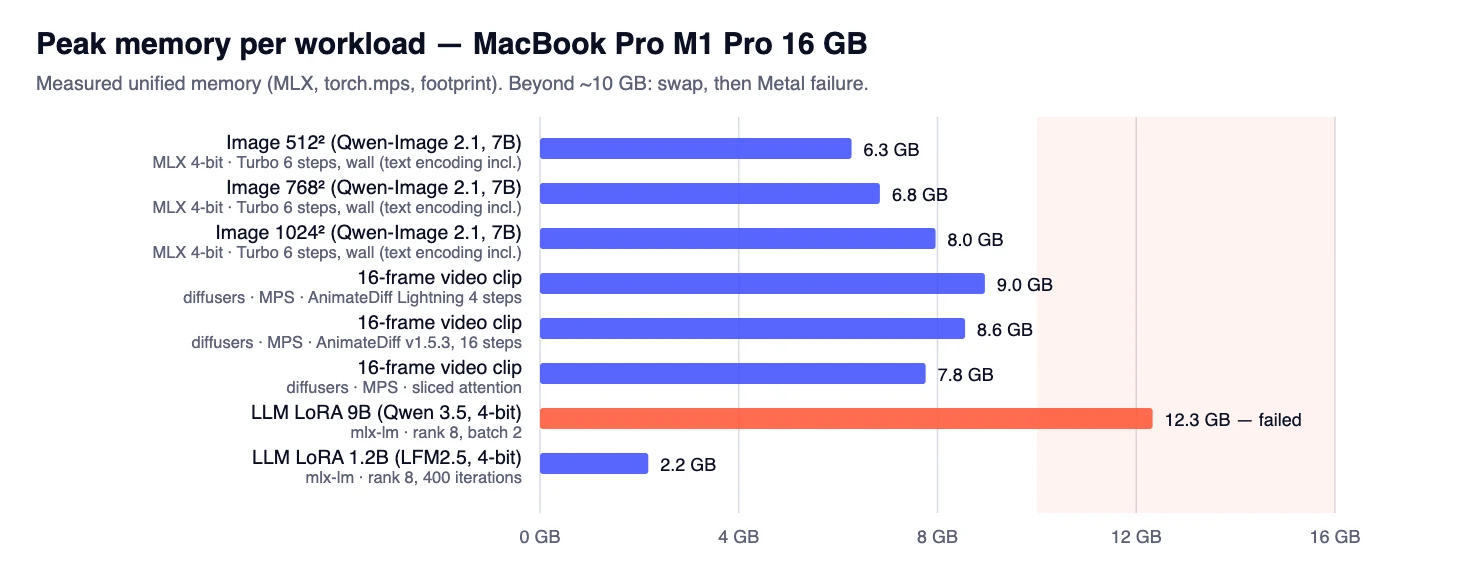

| LoRA on a 9B LLM | no | Metal peak 12.3 GB → GPU ≥ 24 GB |
Every value is read from the file that produced it (source column of the synthesis table).
Qwen2.5-3B Q4_K_M, 128 generated tokens
| Run | Phase | Metal (tok/s) | CPU (tok/s) |
|---|---|---|---|
| 1 | cold | 52.5 | 10.0 |
| 2 | warm | 52.9 | 12.0 |
| 3 | warm | 30.0 | 12.8 |
| 4 | warm | 28.2 | 21.1 |
GPU throughput drops from the 3rd warm call: an average would have hidden it.
Deliverables 4
- ComfyUI bench and LLM bench in Python, standard library.
- Four measured series: SD 1.5 validation and warm, LLM on Metal and on CPU.
- Full conditions for each series: versions, graph, settings.
- Sizing guide, sourced synthesis table and two charts in French and English, regenerated with one command.
Environment
Hardware and measurement setup
- Every measurement on a MacBook Pro M1 Pro 16 GB, ComfyUI 0.41.0 and PyTorch on MPS, in real-workstation conditions: min–max spreads are shown.
Reproduce README commands
Private code: read access under NDA, or a 30-minute live demo. Request access →
cd portfolio/projets/p06-gpu-notebook
python3 guide/synthese.py # tableau + graphiques FR/EN, < 1 s
# nouvelle série image (ComfyUI lancé sur le port 8188) :
cd banc
python3 banc-comfyui.py --seeds 404,505,606 --steps 20 \
--prompt "wet dark basalt rock close-up, hard raking light, fine mist, mineral texture, photorealistic" \
--out ../mesures/AAAA-MM-JJ_nom-de-serie- MacBook Pro M1 Pro 16 GB, ComfyUI 0.41.0, PyTorch on MPS.
- Timings measured on a real workstation: min–max spreads are shown.
